Tela de 8 Polegadas
Modelo: DMG80600T080_02W (Classe Industrial)
Features:
● Based on self-designed T5L ASIC, 16.7M Color, 24bit, 800*600 Pixel;

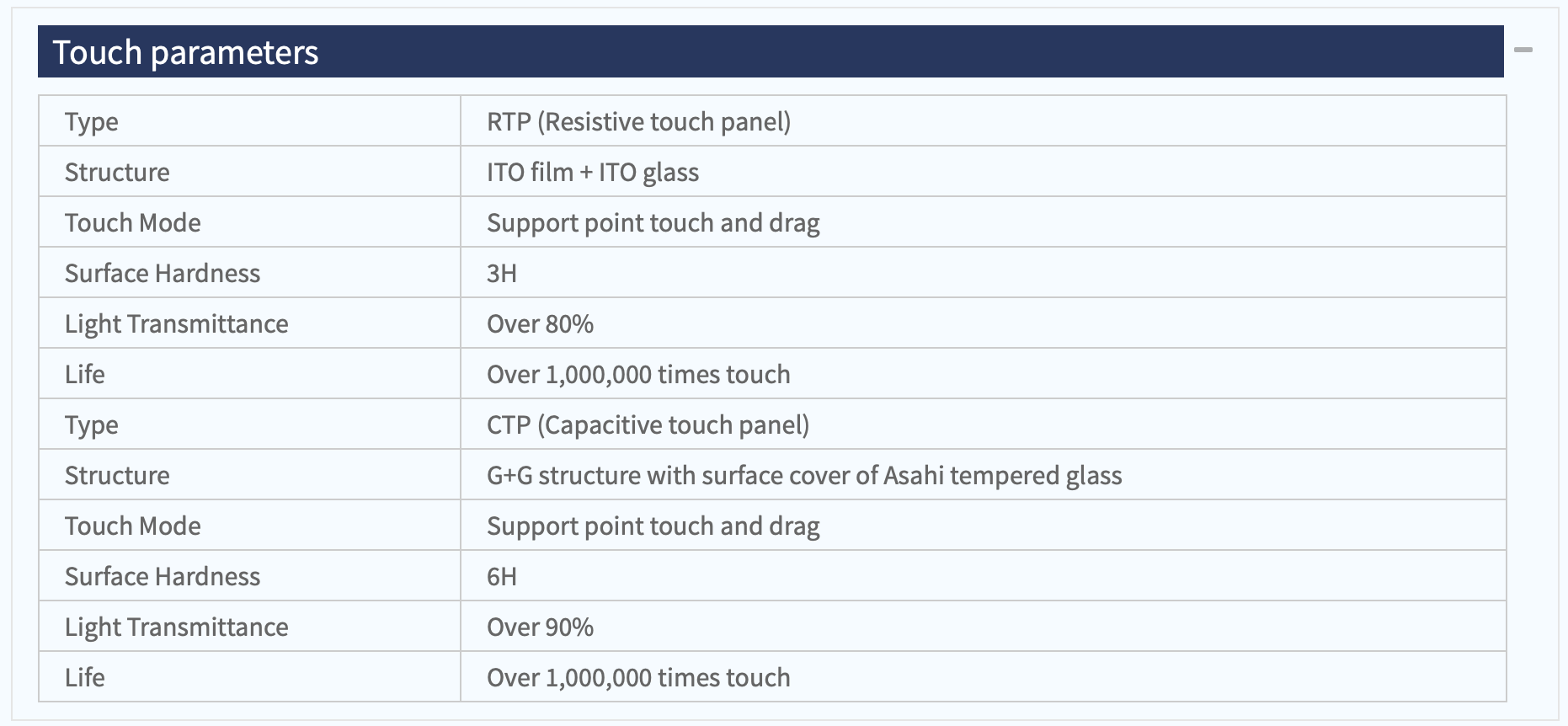

● No touch screen/Resistive touch screen/Capacitive touch screen;

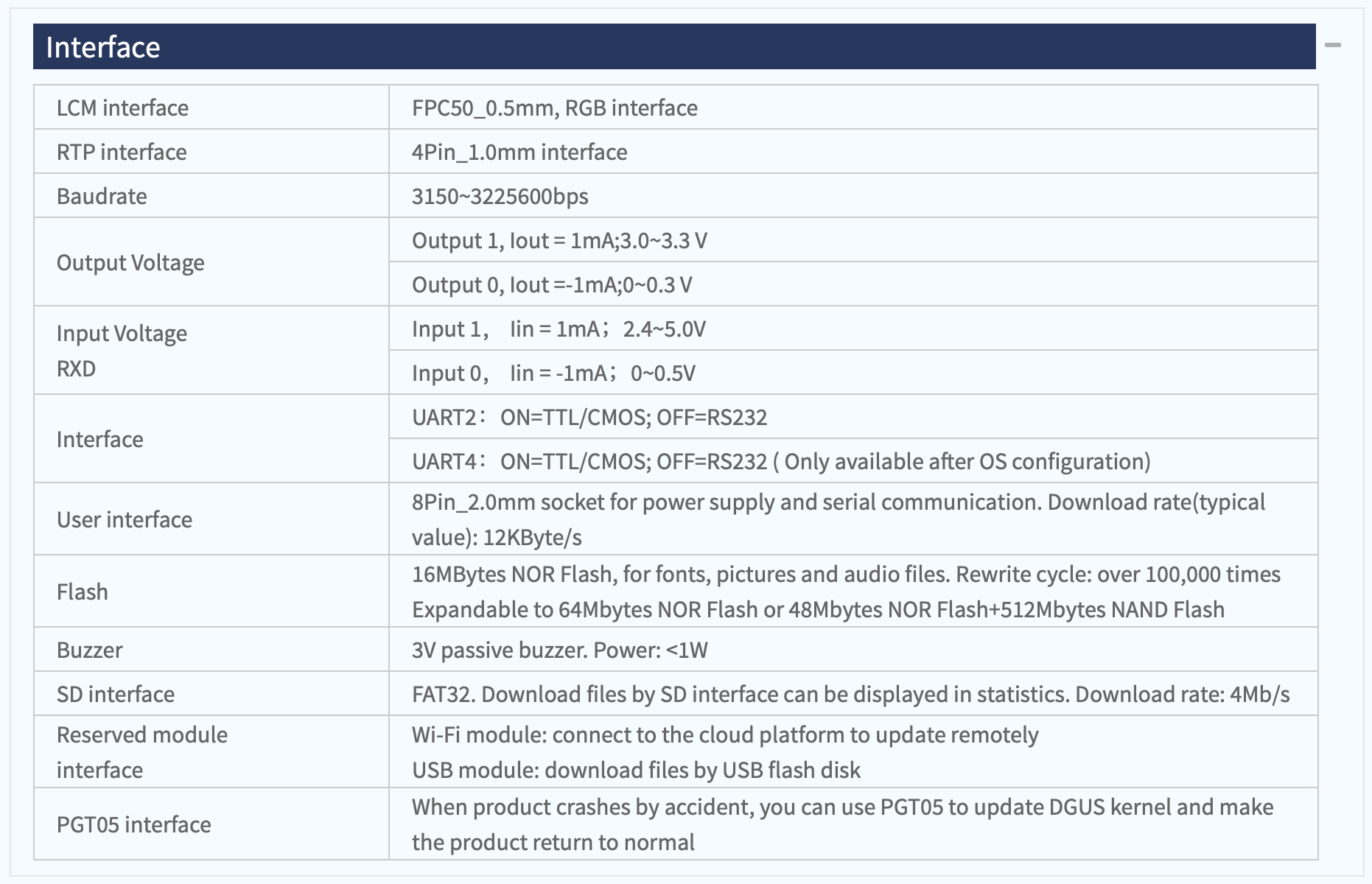

● Serial Port: TTL or RS232 Interface ,8Pin_2.0mm ;
● Files downloading under SD card or on-line UART 2 port;
● GUI project is based on DGUS V7.6 tool, no coding skills required;
● Running classic DGUS II system

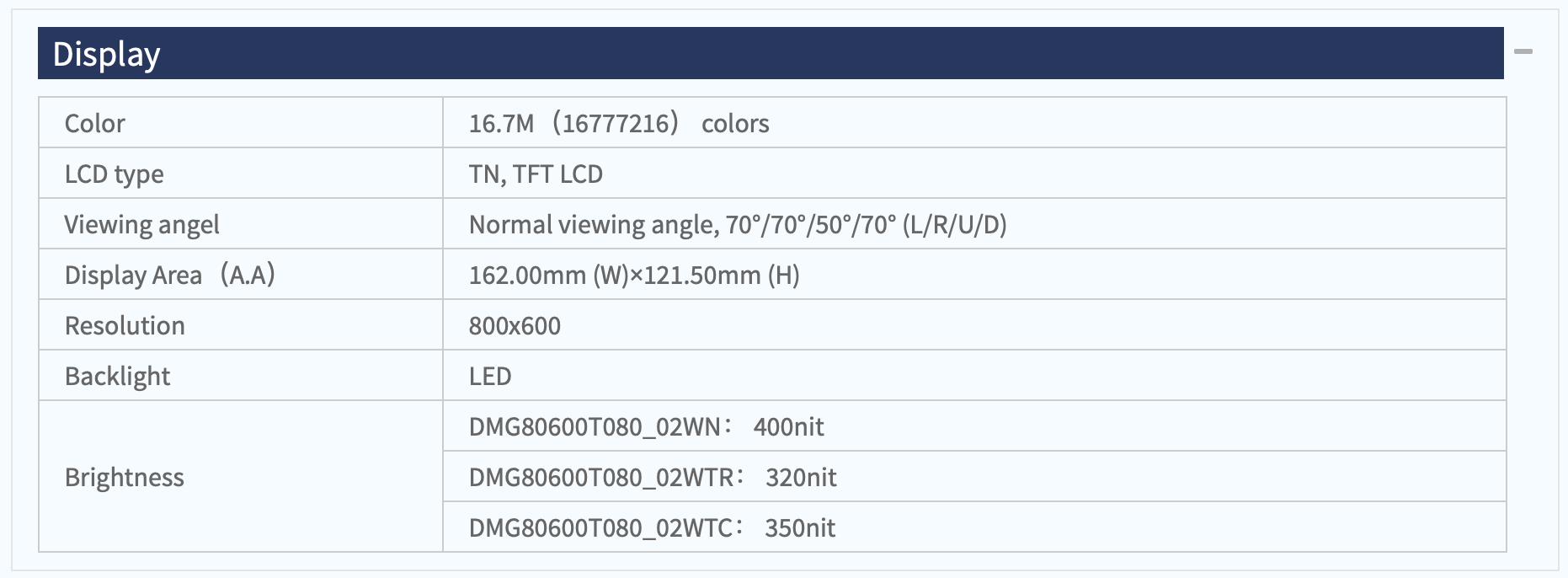

● TN-TFT-LCD, Normal View Angle: 70°/70°/50°/70° (L/R/U/D) ;
● DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
