Tela de 8 Polegadas
Modelo: DMG80600C080_03W (Classe Comercial)
Features:

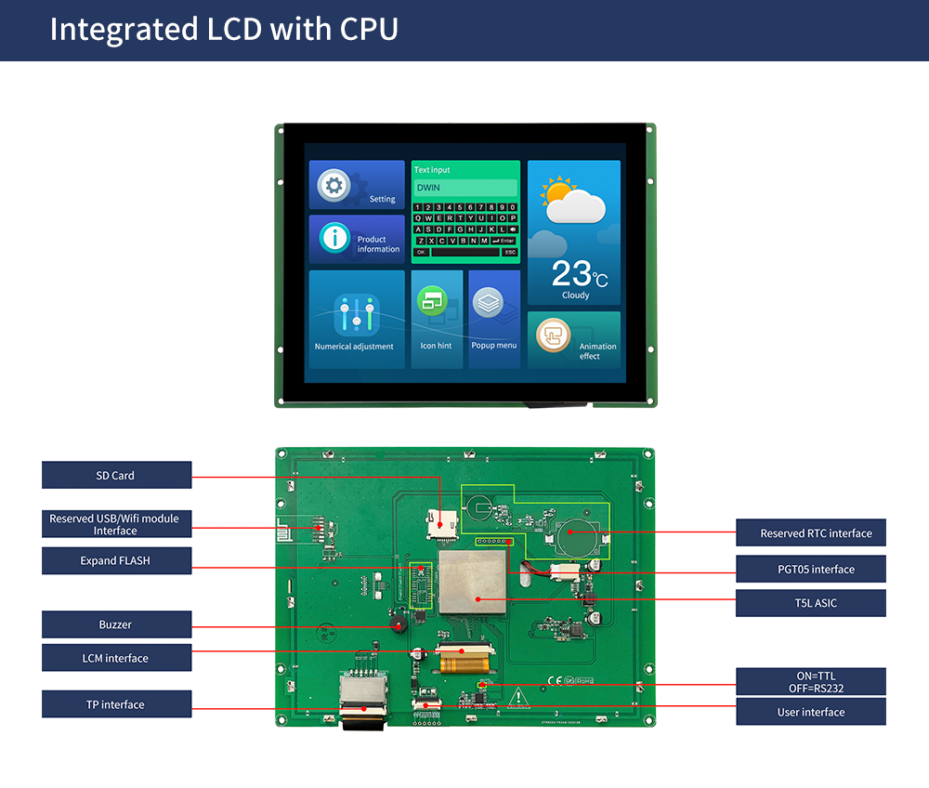

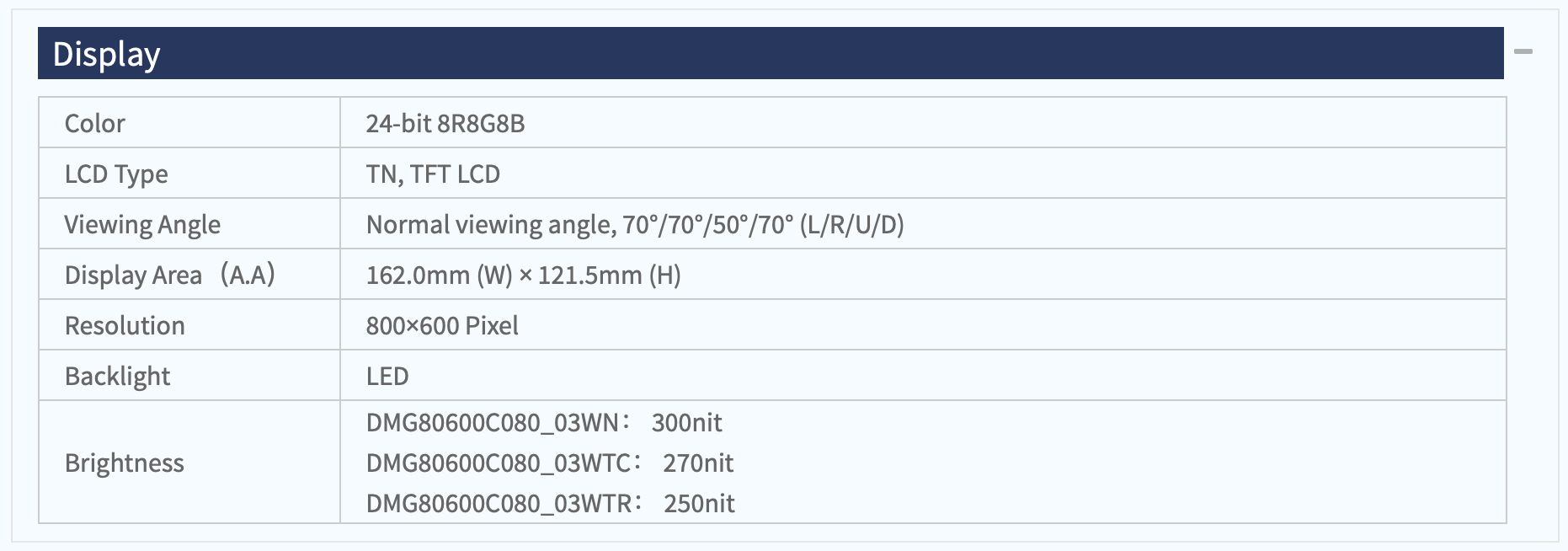

● T5L ASIC, 262K Colors, 18 bit, 800*600 Pixel TFT LCD;

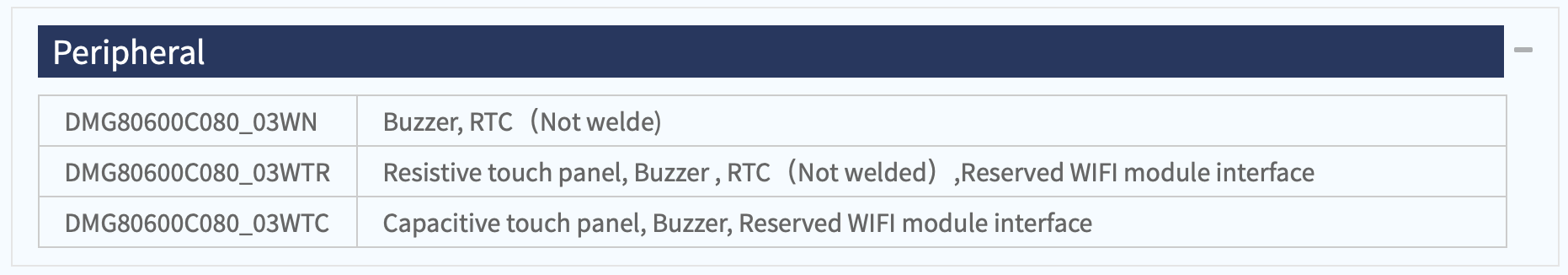

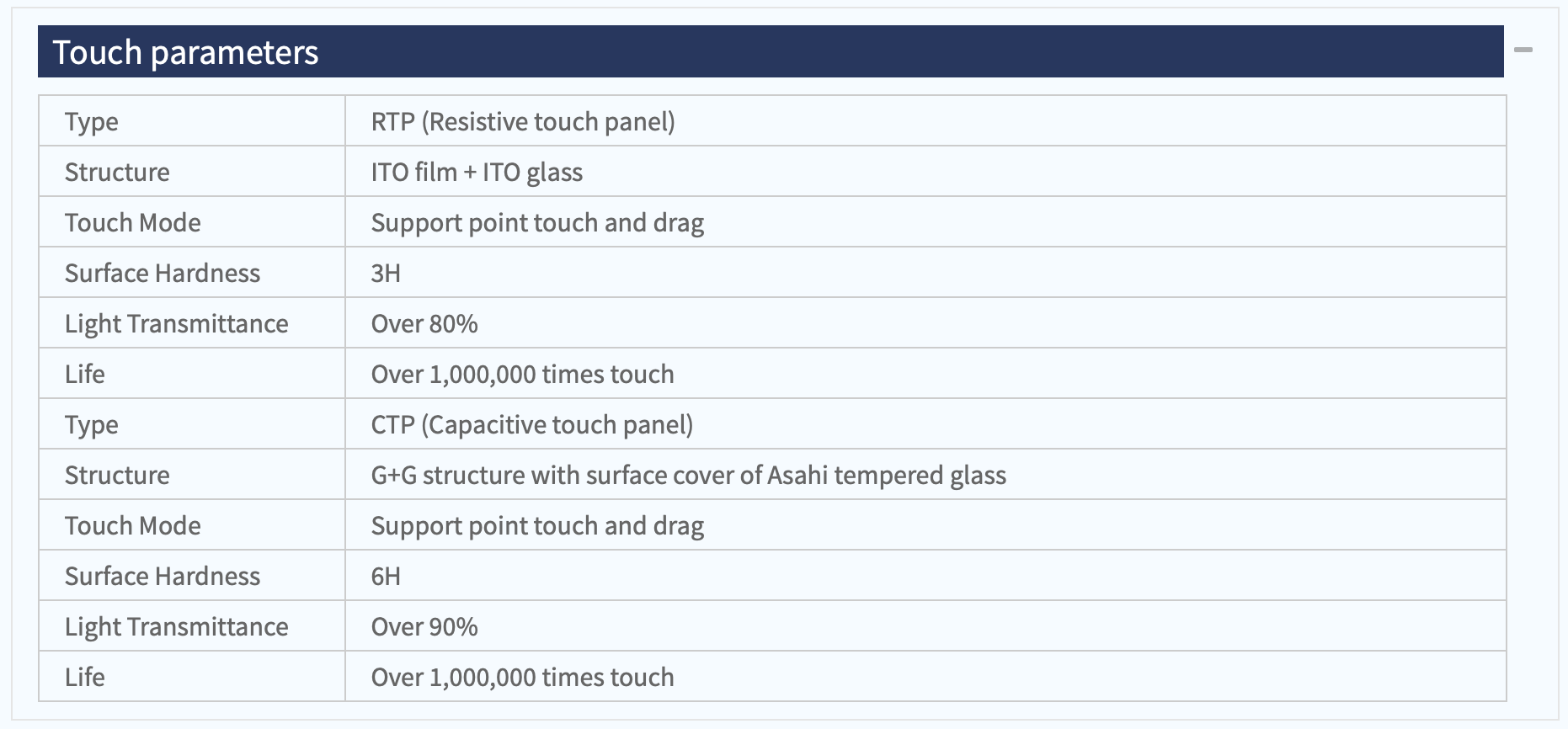

● None touch panel Resistive , Capacitive;
● TTL Interface, RS232, 8Pin_2.0mm connection wire;
● Download Ways : SD card or on-line serial port;

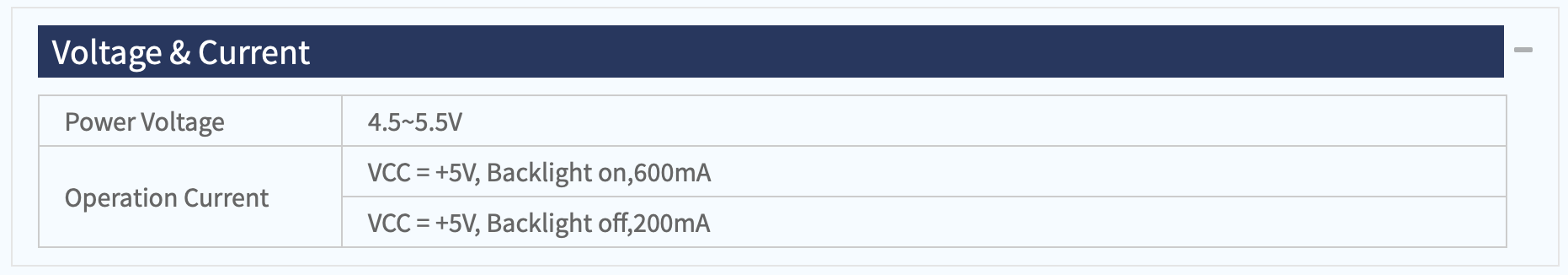

● Power supply：Default is 4.5~5.5V, 5V as default.
● Dual Development System: DGUS II/TA Instruction set;
● EWTN View Angle:70/70/50/55(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or KEIL C51;
