Tela de 4,3 Polegadas
Modelo: DMG80480T043_09W (Classe Industrial)
Features:

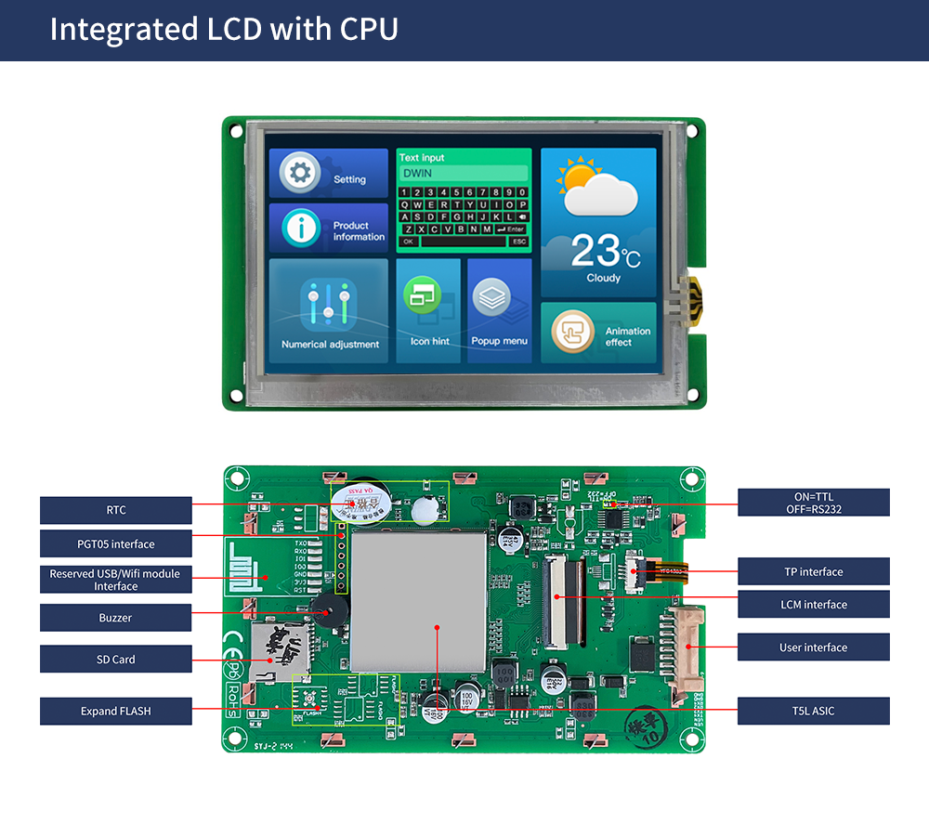

● Based on self-designed T5L0, 262K Color 18-bit,800*480 Pixel IPS TFT LCD;

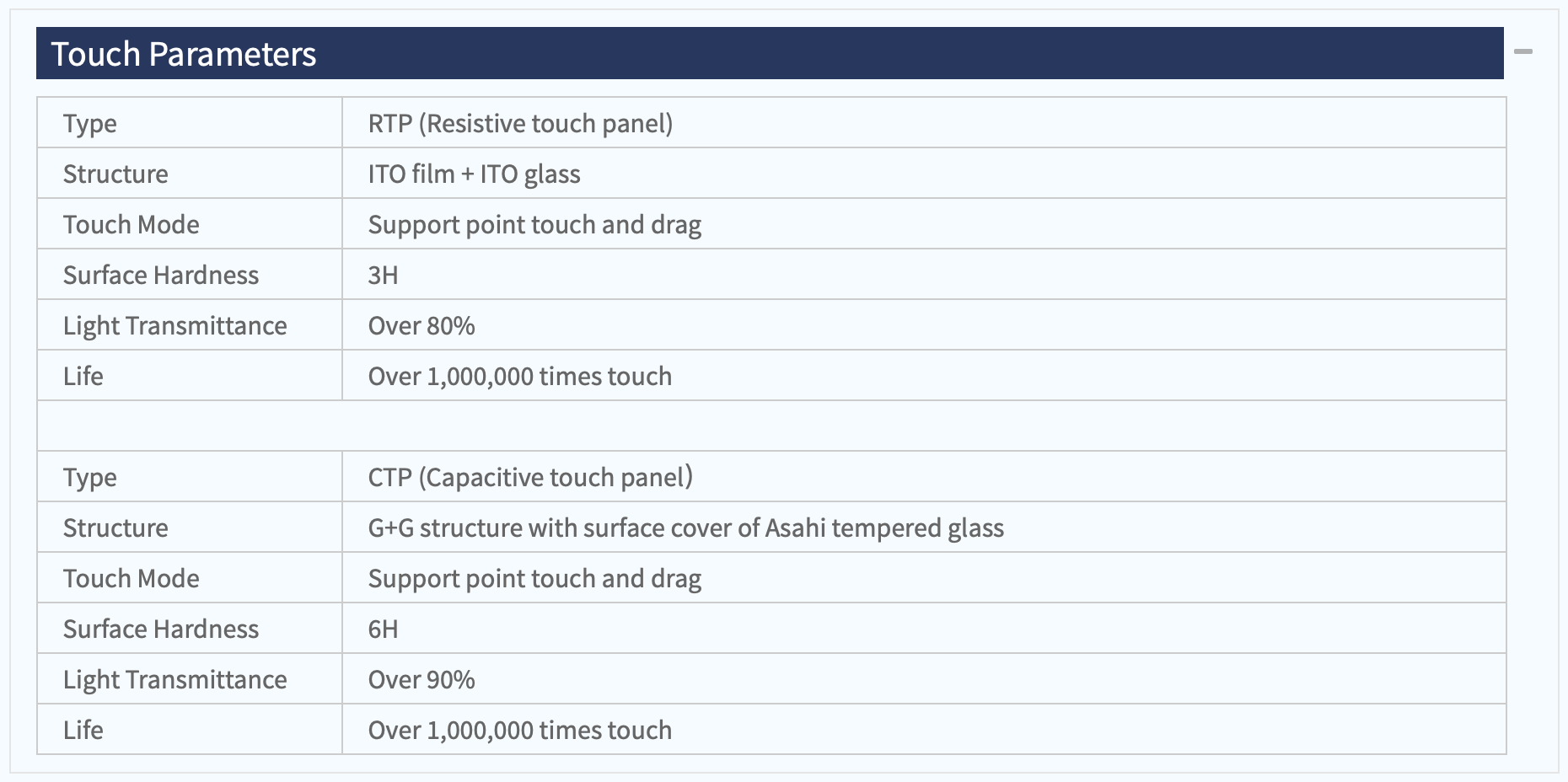

● High Brightness no touch /Capacitive/Resistance:900nit/810nit/720nit;
● TTL and RS232 Interface with 8 Pin 2.0 mm connection wire;
● Download through SD card or on-line serial port available;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no need for code;
● Two kinds of system for development: DGUSⅡ/TA (Instruction set);
● Wide View Angle 85/85/85/85 (L/R/U/D);
● With GUI & OS dual-core, GUI with many controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
