Tela de 3,5 Polegadas
Modelo: DMG32240C035_03W (Classe comercial)
Features:

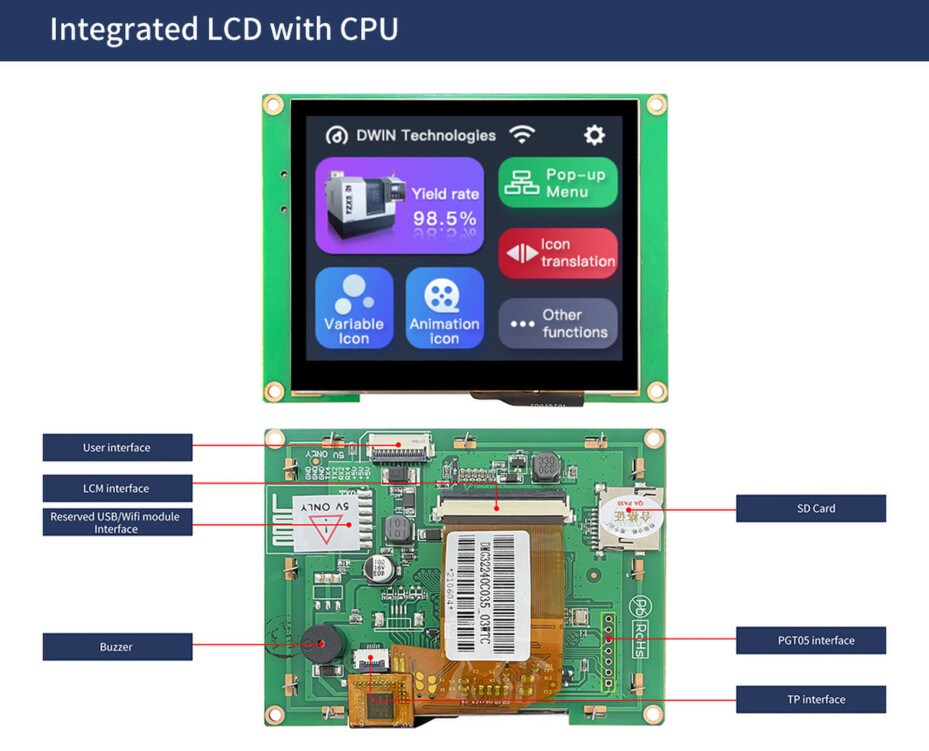

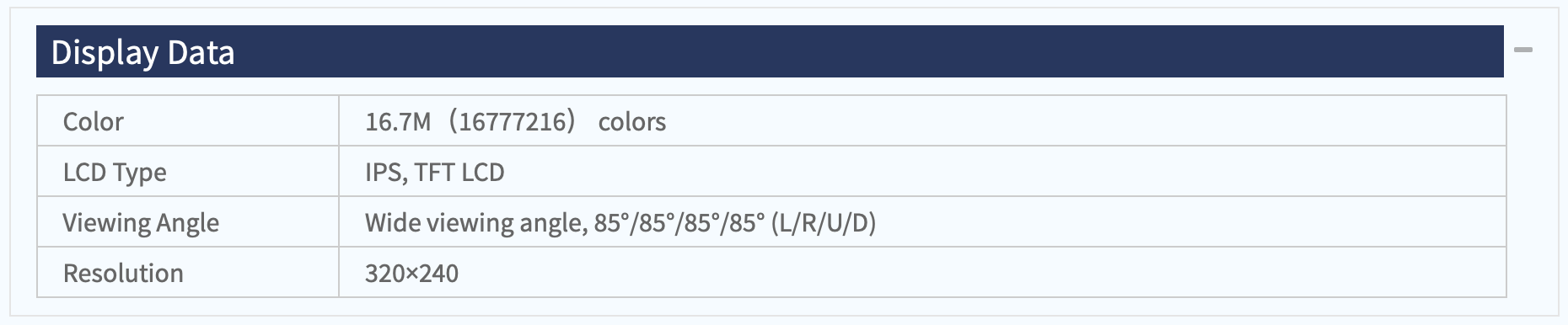

●3.5 inch based onT5L ASIC, IPS-TFT-LCD,16.7M Colors,24-bit, 320*240 pixel;
● Without touch /Resistive touch screen/Capacitive touch screen;

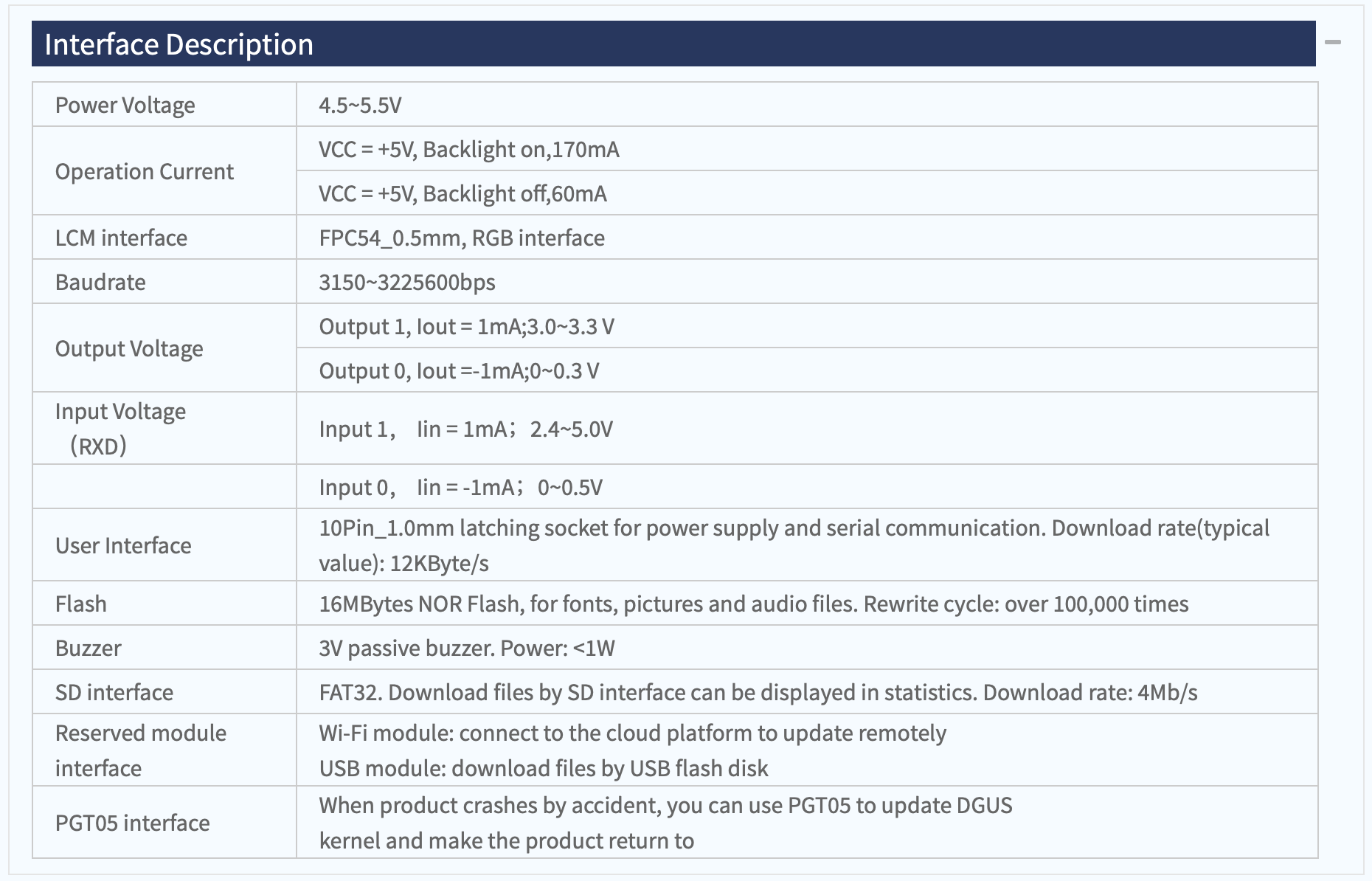

● TTL/CMOS interface,10Pin_1.0mm;
● Download via SD card or on-line serial port;
● Friendly DWIN DGUS V7.624 GUIs Development Software;
●3150~3225600bps, typical value of 115200bps;
● Wide viewing angle: 85°/85°/85°/85°(L/R/U/D) ;
● Seperate GUI and OS CPU, No code for GUI design . DWIN OS language or Keil C51 development mode for OS CPU.
