Tela de 5 Polegadas
Modelo: DMG12720T050_01W (Classe Industrial)
Features:

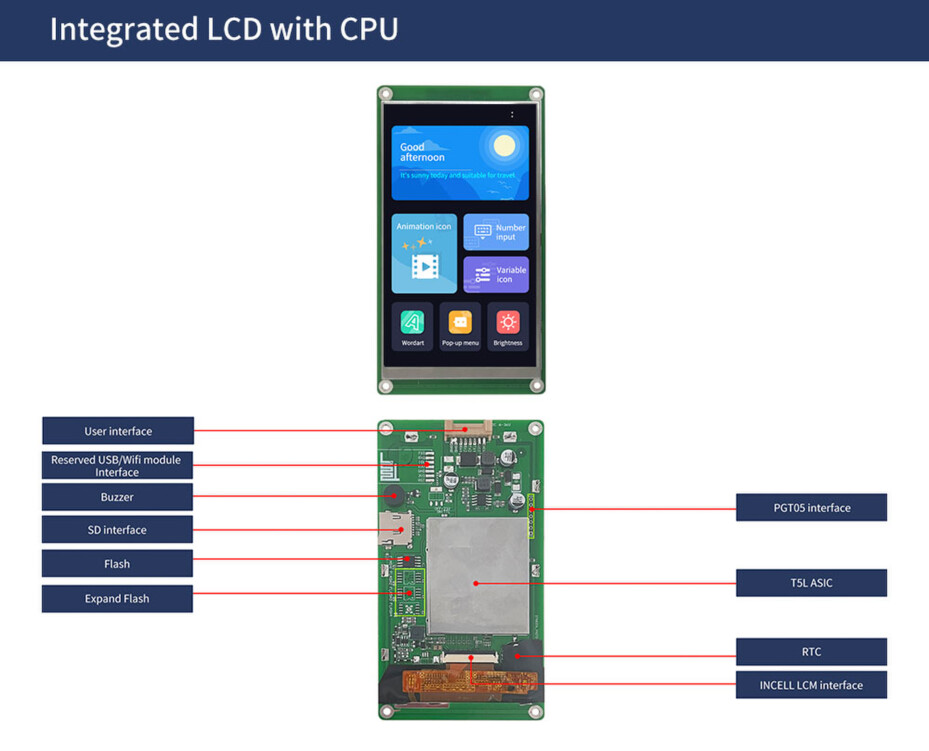

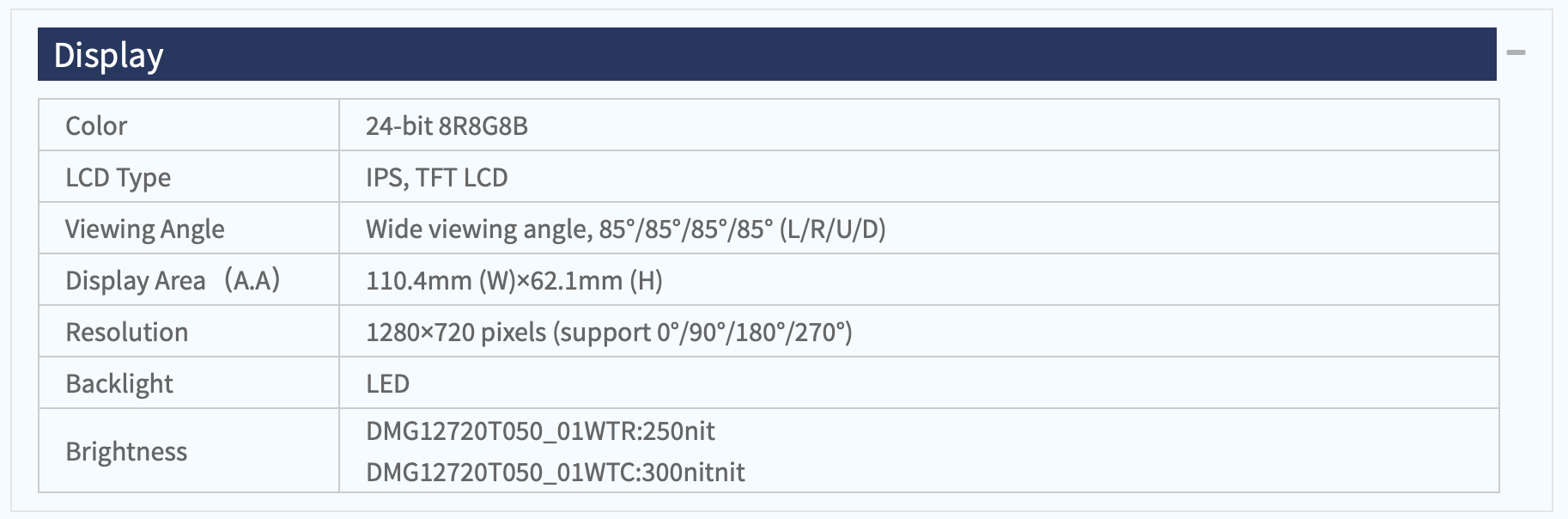

● Based on T5L ASIC 5.0 Inch, 1280xRGBx720, 16.7M Colors, IPS-TFT-LCD Standard instruction set (TA) / DGUS Ⅱ system, Cost-Effective screen;

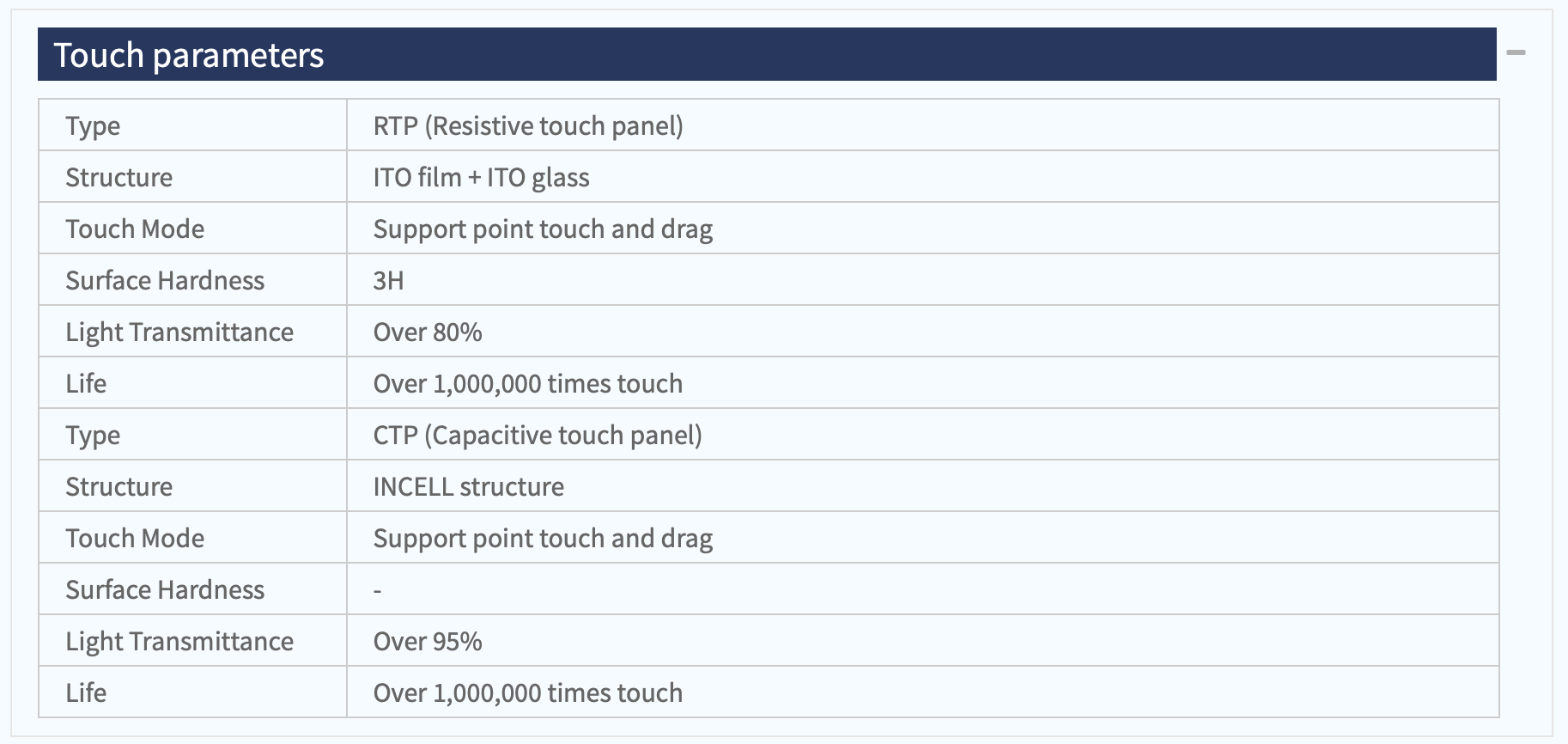

● Touch Mode:None /Resistive /Capacitive;

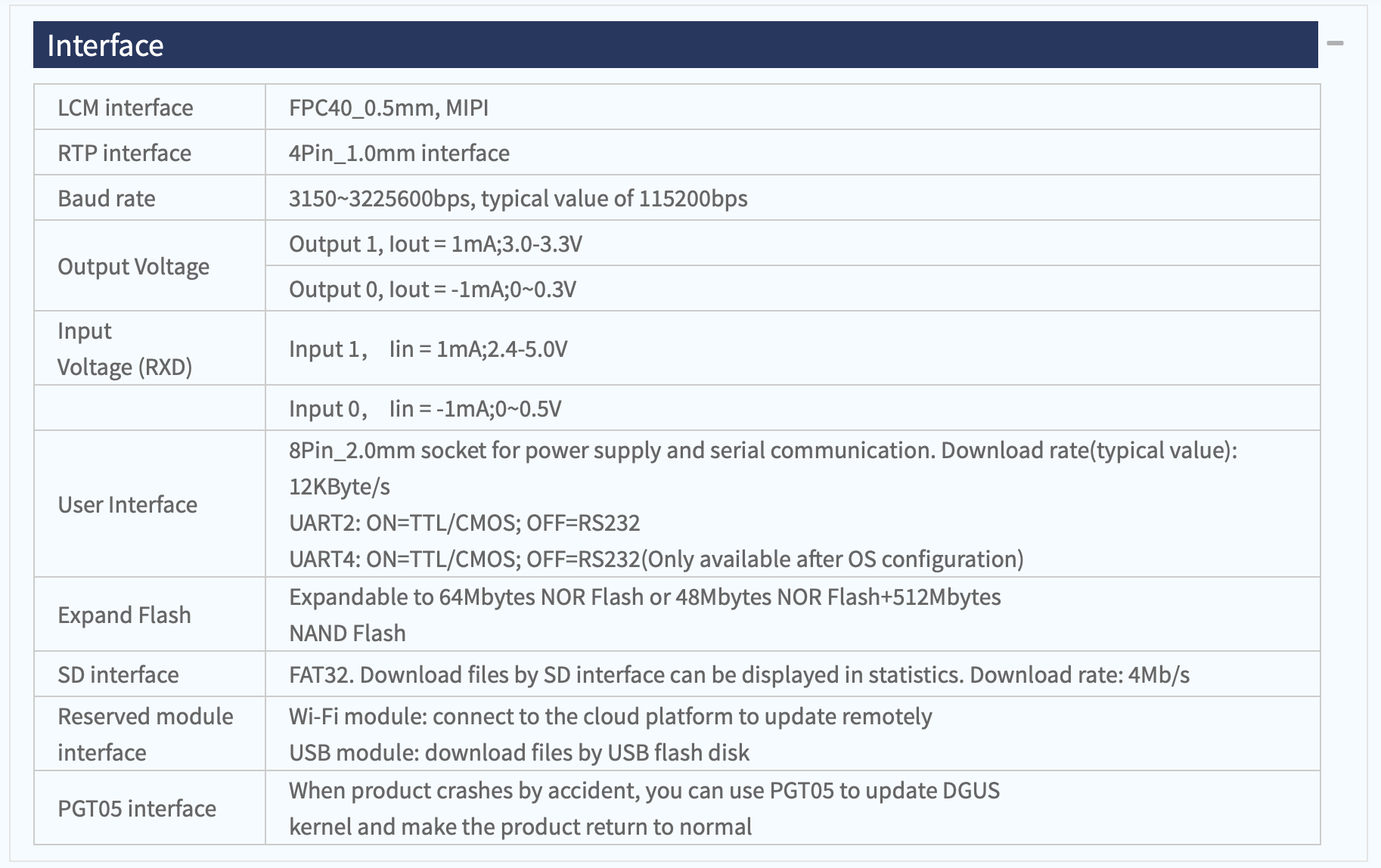

● TTL/CMOS or RS232 ,8 Pin_2.0mm Lock Socket, 8 PIN 2.0mm connector wire;
● Download project by SD Card or online serial port;
● Easy to use DWIN DGUS V7.624 GUI Development ,no need any coding skills ;
● Dual Development type: DGUS II/TA (Instruction set)
● IPS Wide viewing angle, 85°/85°/85°/85°;
● Dual CPU of 8051 processor ,GUI and OS dual-CPU, OS is for user’s code application,which can be programmed by DWIN OS Language or KEIL C51.
