Tela de 12,1 Polegadas
Modelo: DMG80600C121_03W (Grade Comercial)
Features:
● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit.
● 800*600 Pixel TFT LCD.
● Has onboard speakers and the Power should be <2W
● TA(Instruction set)/ DGUSⅡdevelopment system

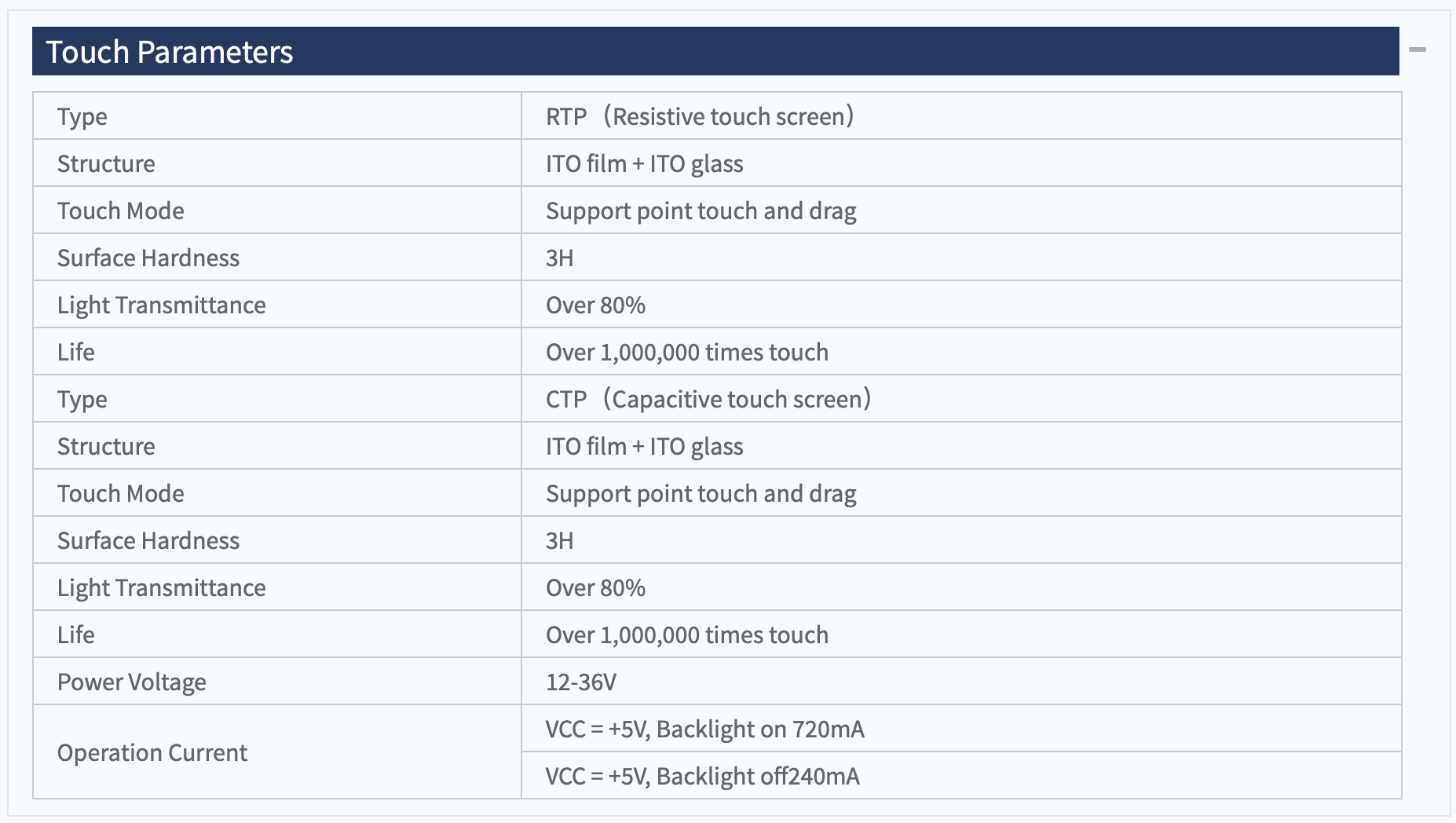

● No touch screen/Resistive touch screen/Capacitive touch screen Optional;

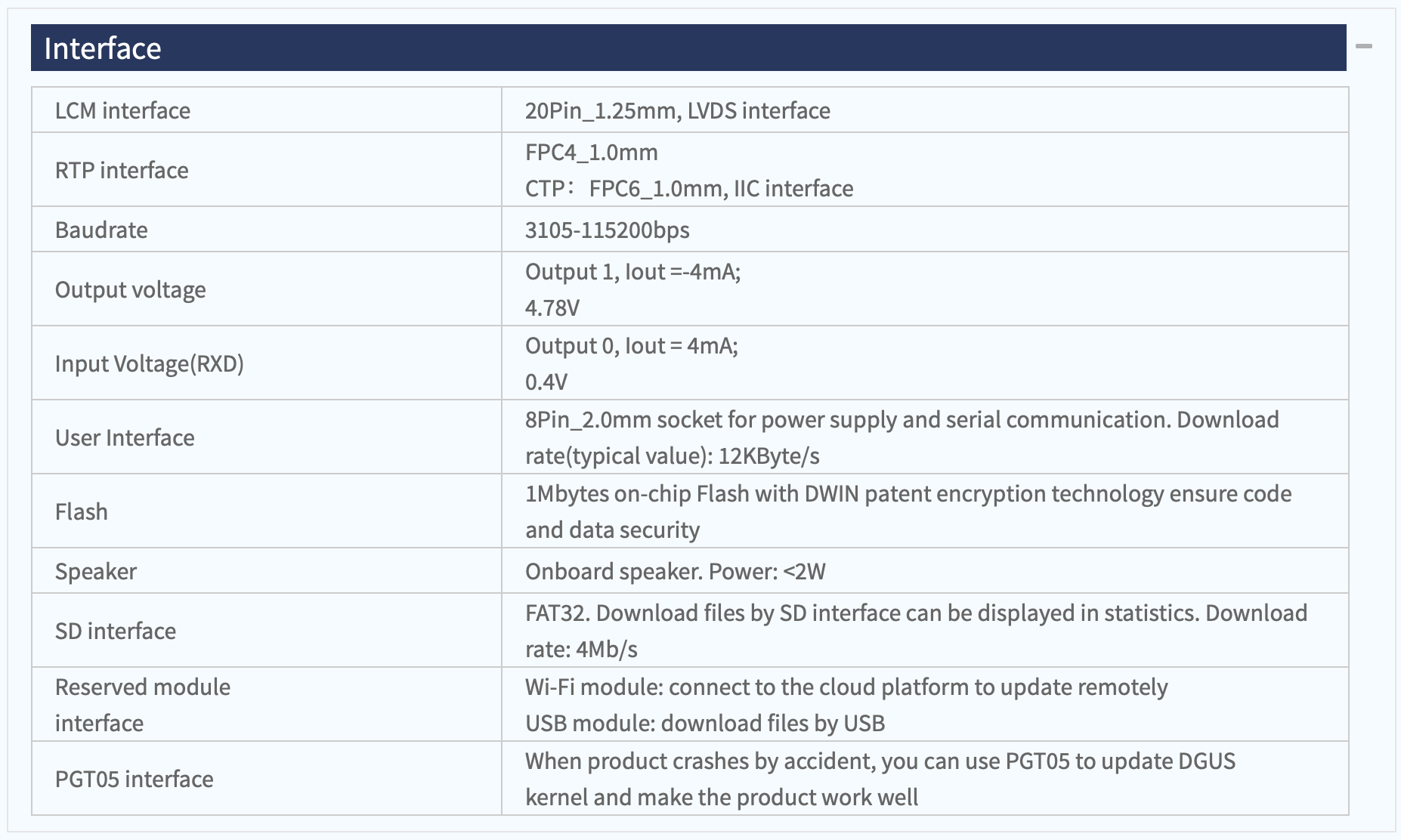

● TTL and 232 Interface available, user use 8 Pin2.0mm FCC connection wire connect Products
● The finished project will be downloaded by SD card or uart port
● Using DWIN DGUS V7.6 GUl Development tool , no coding skills required. Easy to develop
● IPS wide view Angle:85/85/85/85 (URUD);
● Reserved WIFI and USB module interface
● Wi-Fi module: connect to the cloud platform to update remotely
● USB module: download files by USB flash disk
● With GUI &OS dual-core GUI with functional controls. DWIN OS kemel is open to the user for the second-development, vie DWIN OS language or KEIL C51
