Tela de 7 Polegadas
Modelo: DMG12800C070_03W (Classe Comercial)
Features:

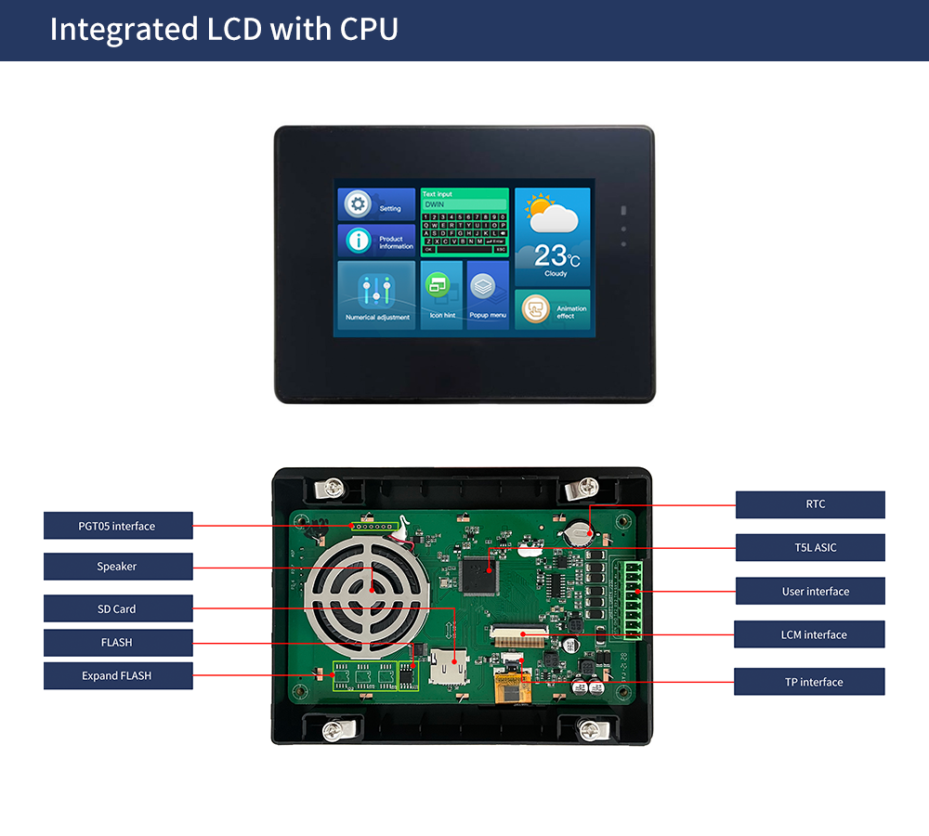

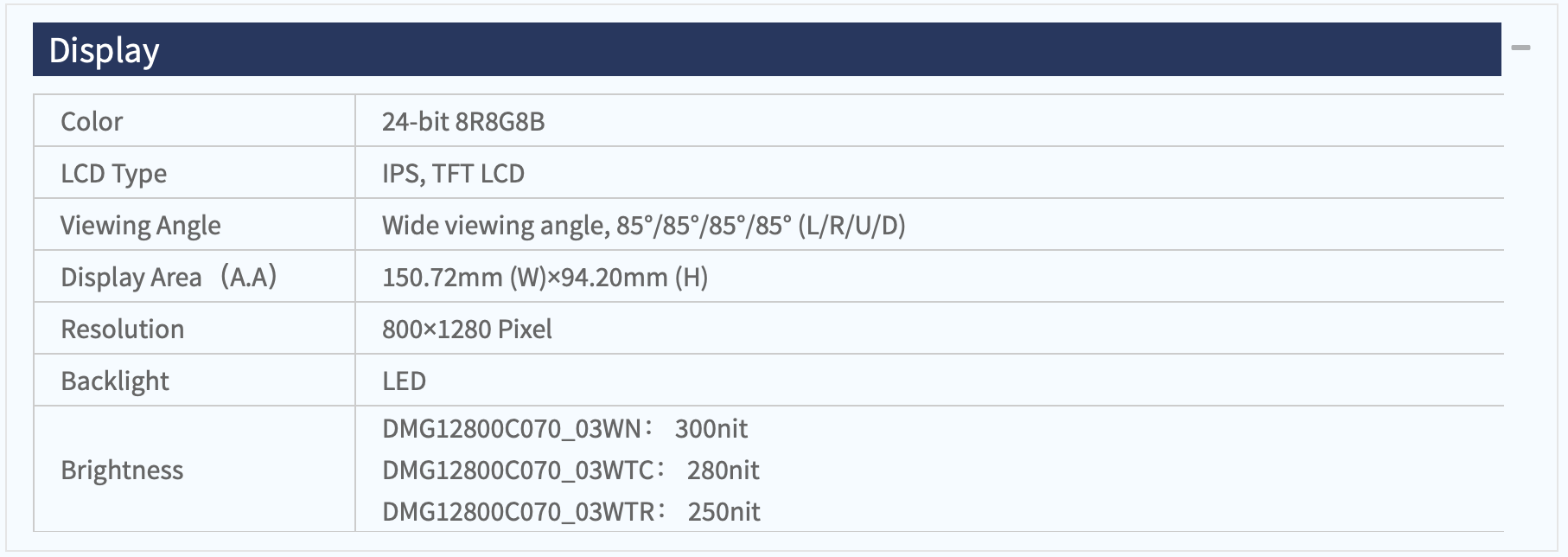

●Based on T5L2, running DGUS II system, commercial grade;7.0-inch, 800*1280 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle;

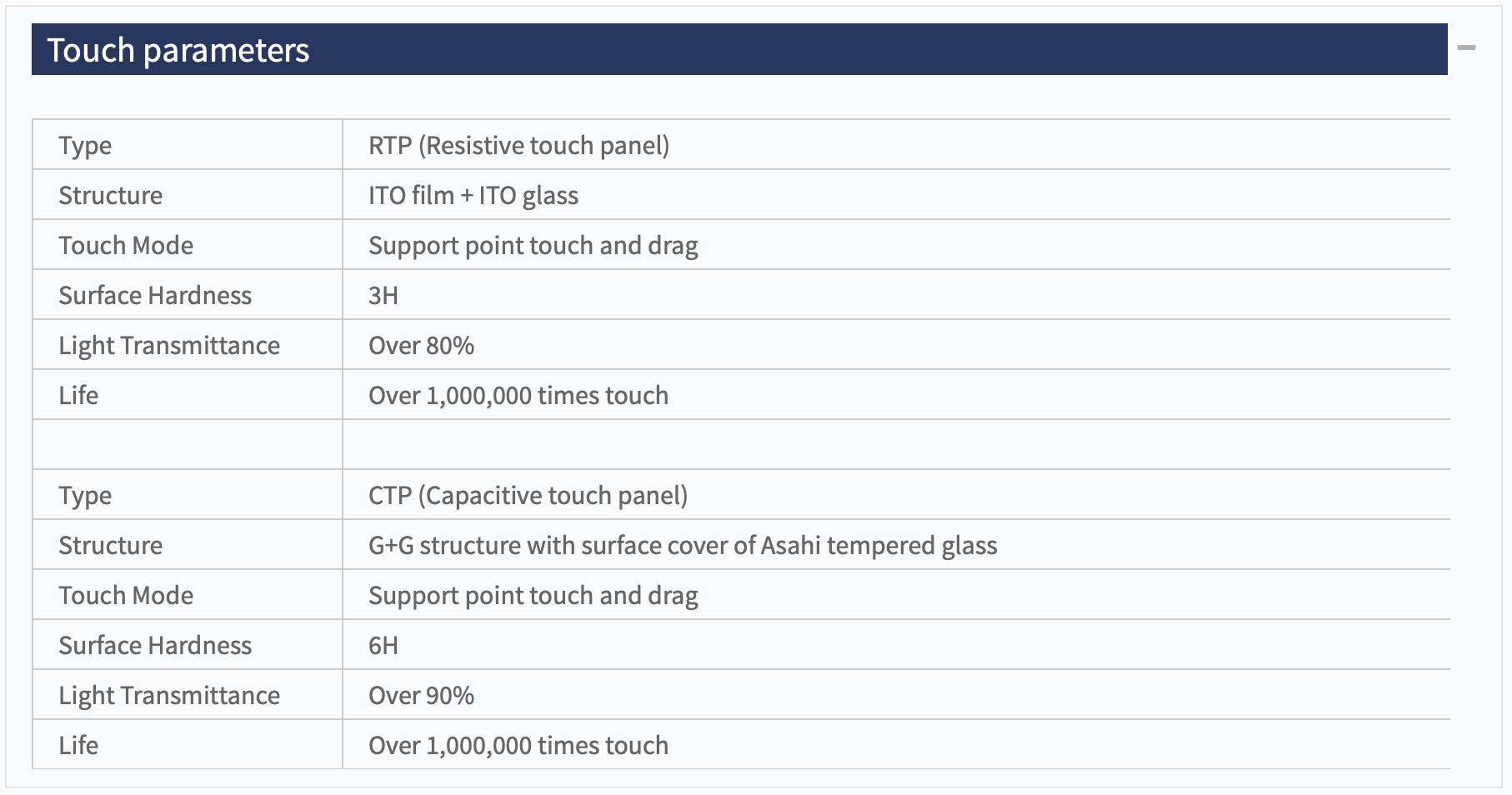

●No /Resistive /Capacitive touch screen Optional;

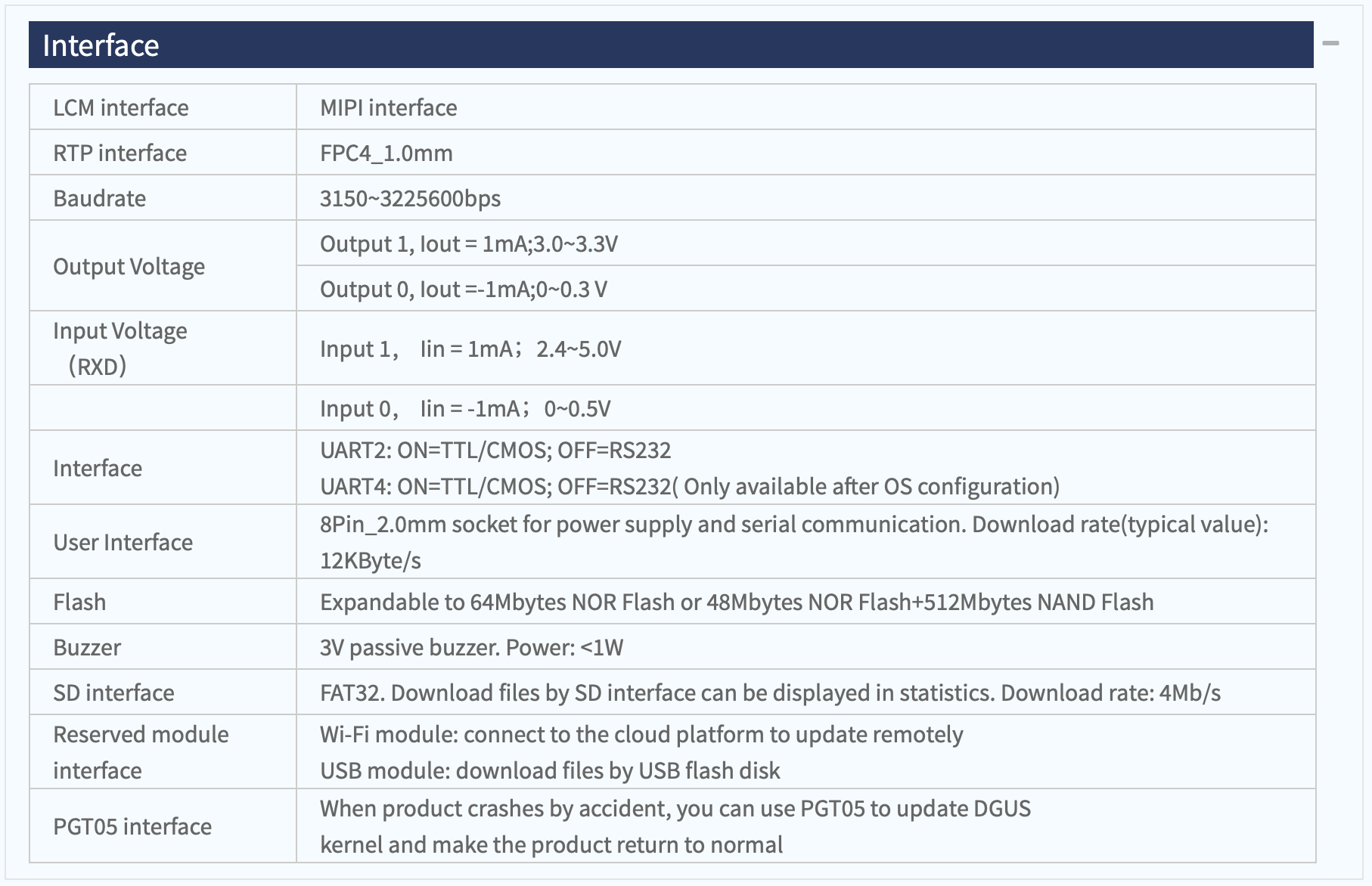

●UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232;8Pin_2.0mm socket for power supply and serial communication;
●Two Download ways:via SD card or on-line serial port;
●Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
●Dual Development System:DGUSⅡ/TA(Instruction set);
●With IPS View Angle:85/85/85/85(L/R/U/D);
●With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
