Tela de 10,4 Polegadas
Modelo: DMG80600C104_03W（Grade Comercial)
Features:

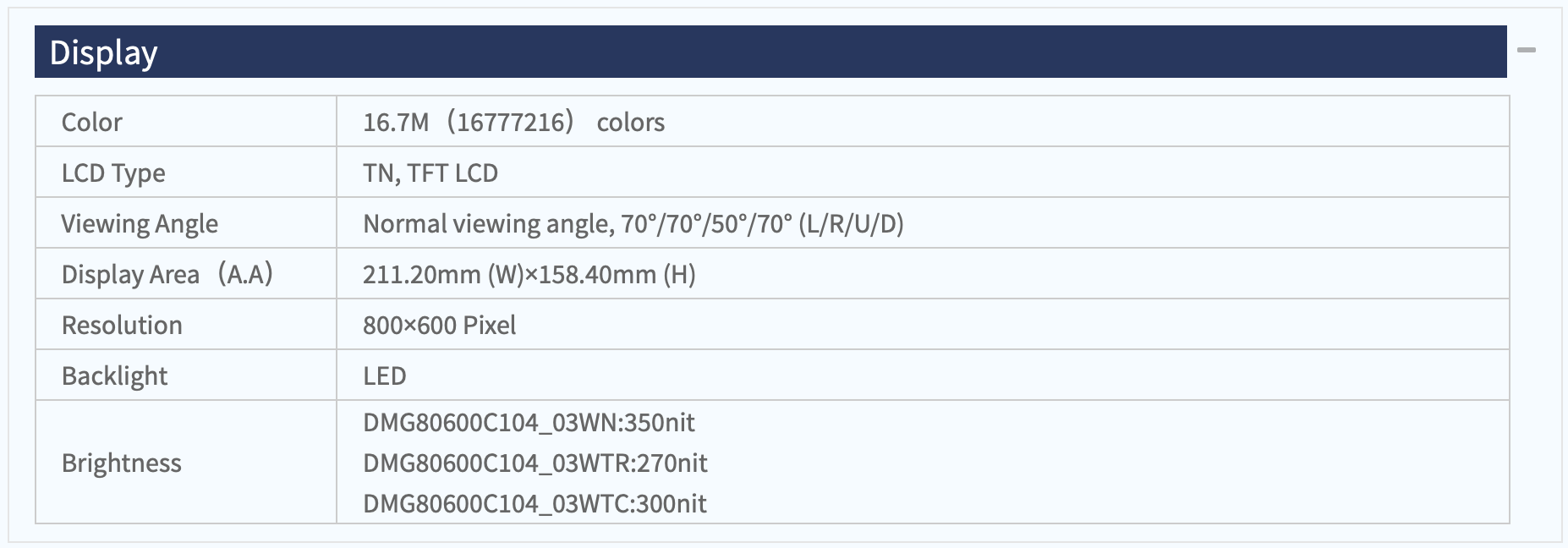

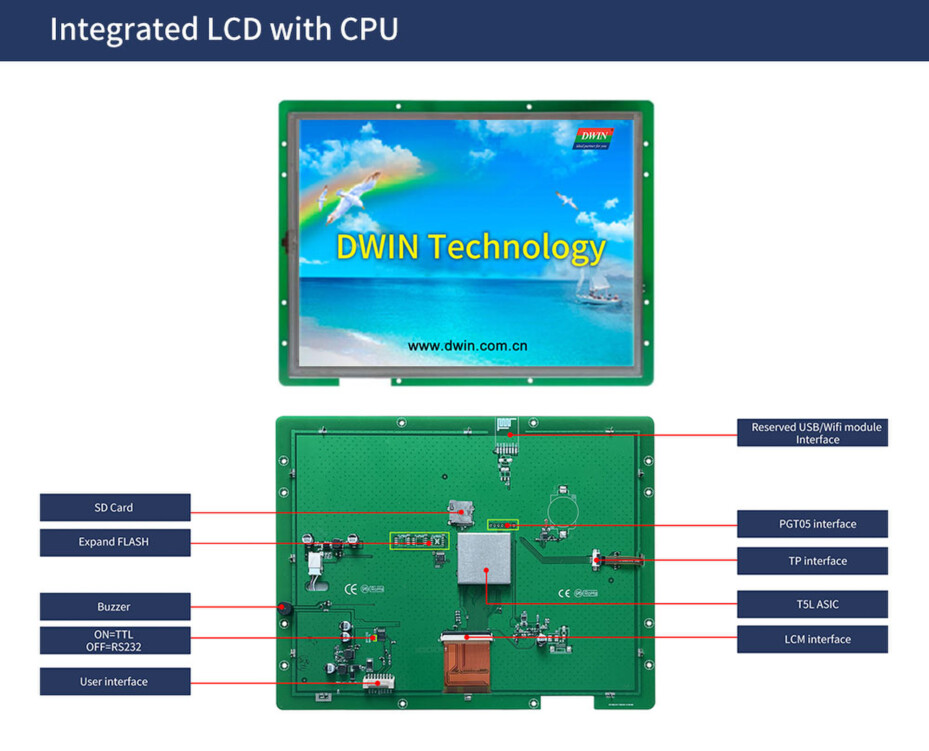

● Based on T5L ASIC 10.4 Inches, 800xRGBx600, 16.7M Colors, TN-TFT-LCD Standard instruction set (TA) / DGUSⅡ system, Effective screen;

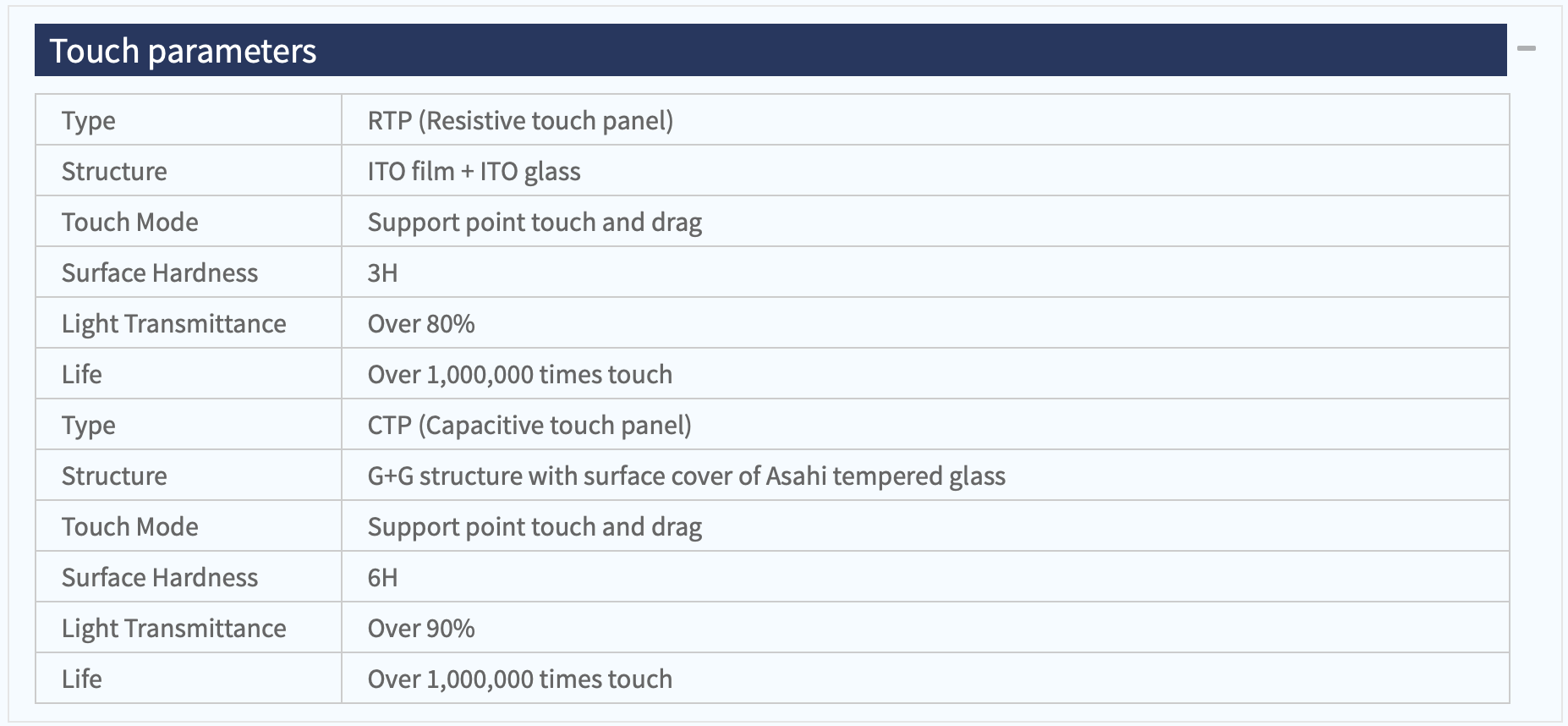

● No touch screen /Resistive touch /Capacitive touch screen Optional.

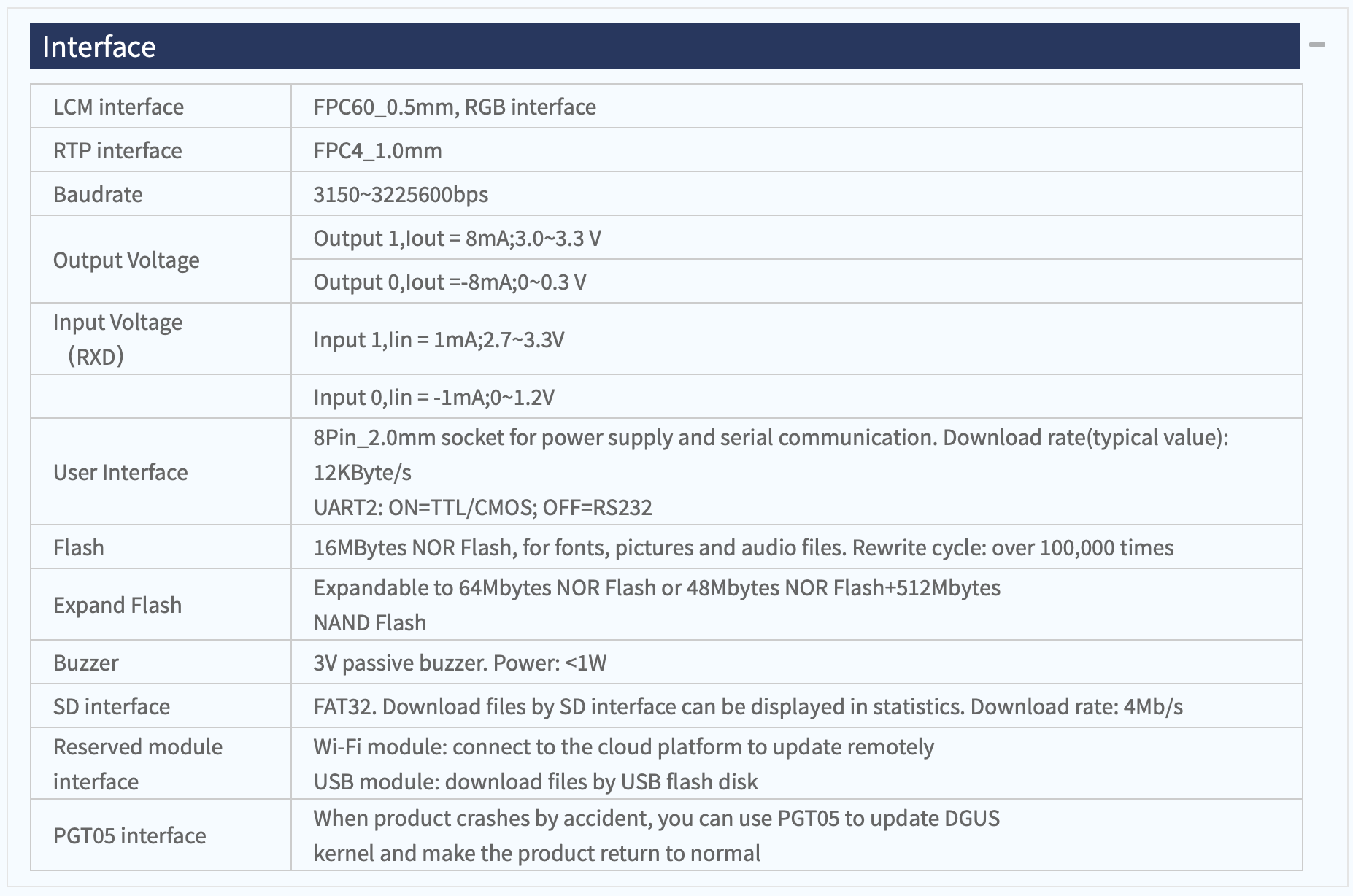

● TTL/CMOS or RS232 ,8Pin_2.0mm Lock Socket, 8PIN 2.0mm connector wire;

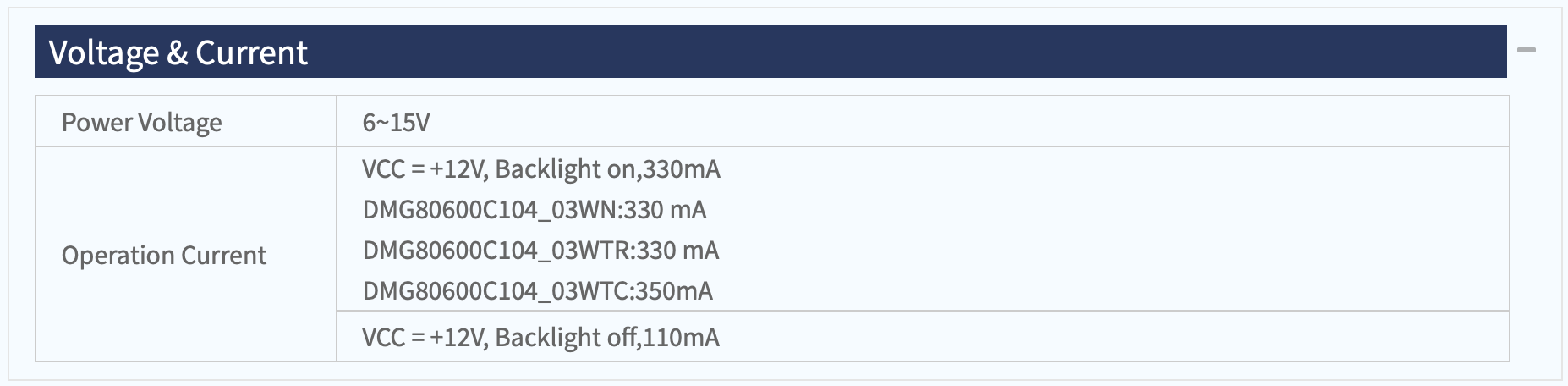

● Wide power supply range :3V ~15v,12v typical value;
● Use DWIN own DGUS V7.624 GUI tool ,no coding skills required;
● Dual Development System: DGUS II/TA (Instruction set)
● Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
● With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second development,via DWIN OS Language or KEIL C51.
